exotkTree_TreeNode Class Reference

a node in a tree. More...

#include <exotkTree_TreeNode.hxx>

Inheritance diagram for exotkTree_TreeNode:

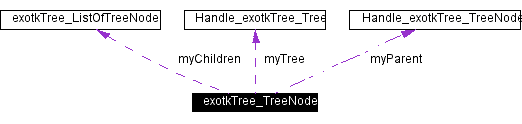

[legend]Collaboration diagram for exotkTree_TreeNode:

[legend]List of all members.

Public Methods
void *	operator new (size_t, void *anAddress)
	OCC new. More...
void *	operator new (size_t size)
	OCC new. More...
void	operator delete (void *anAddress)
	OCC delete. More...
Standard_EXPORT	exotkTree_TreeNode ()
	Constructor. More...
virtual Standard_EXPORT	~exotkTree_TreeNode ()
	Destructor. More...
virtual Standard_EXPORT void	SetData (const Handle_Standard_Transient &aData)
	Set a data to the node. More...
virtual Standard_EXPORT Handle_Standard_Transient	Data ()
	Return the associated data. More...
virtual Standard_EXPORT Standard_Boolean	HasData ()
	Return true if a data is associted to the node. More...
virtual Standard_EXPORT Standard_Boolean	IsRoot ()
	Return true if the node is a root. More...
virtual Standard_EXPORT Standard_Boolean	HasChildren ()
	Return true if the node has children. More...
virtual Standard_EXPORT Handle_exotkTree_TreeNode	FirstChild ()
	Return the first child. More...
virtual Standard_EXPORT Handle_exotkTree_TreeNode	LastChild ()
	Return the last child. More...
virtual Standard_EXPORT void	Children (exotkTree_ListOfTreeNode &aChildList)
	Return the children of the node. More...
virtual Standard_EXPORT Standard_Boolean	HasParent ()
	Return true if the node has a parent node. More...
virtual Standard_EXPORT Handle_exotkTree_TreeNode	Parent ()
	Return the parent. More...
virtual Standard_EXPORT void	SetParent (const Handle_exotkTree_TreeNode &aParent)
	Set aParent* as parent node.* More...
virtual Standard_EXPORT void	SetTree (const Handle_exotkTree_Tree &aTree)
	Set the tree. More...
virtual Standard_EXPORT Handle_exotkTree_Tree	Tree ()
	Return the associated tree. More...
virtual Standard_EXPORT Standard_Boolean	HasTree ()
	Return true if a tree is associated to this node. More...
virtual Standard_EXPORT TCollection_AsciiString	SetName (const TCollection_AsciiString &aName)
	Set the name of this node. More...
virtual Standard_EXPORT TCollection_AsciiString	Name ()
	Return the name of this node. More...
virtual Standard_EXPORT Standard_Boolean	SetChecked (const Standard_Boolean aCheckStatus)
	Set the check status. More...
virtual Standard_EXPORT Standard_Boolean	IsChecked ()
	Return true if this node is checked. More...
virtual Standard_EXPORT Standard_Boolean	FindChild (const TCollection_AsciiString &aNodeToFind, Handle_exotkTree_TreeNode &aFoundNode)
	Find the child of this with aNodeToFind* name.* More...
virtual Standard_EXPORT Standard_Boolean	AppendChild (const Handle_exotkTree_TreeNode &aChildToAppend)
	Insert aChildToAppend* at the end of the child list.* More...
virtual Standard_EXPORT Standard_Boolean	PrependChild (const Handle_exotkTree_TreeNode &aChildToPrepend)
	Insert aChildToAppend* at the beginning of the child list.* More...
virtual Standard_EXPORT Standard_Boolean	InsertChildAfter (const Handle_exotkTree_TreeNode &aChildToInsert, const Handle_exotkTree_TreeNode &After)
	Insert aChildToInsert* after After.* More...
virtual Standard_EXPORT Standard_Boolean	InsertChildAfter (const Handle_exotkTree_TreeNode &aChildToInsert, const TCollection_AsciiString &After)
	Insert aChildToInsert* after the node named After.* More...
virtual Standard_EXPORT Standard_Boolean	InsertChildBefore (const Handle_exotkTree_TreeNode &aChildToInsert, const Handle_exotkTree_TreeNode &Before)
	Insert aChildToInsert* before Before.* More...
virtual Standard_EXPORT Standard_Boolean	InsertChildBefore (const Handle_exotkTree_TreeNode &aChildToInsert, const TCollection_AsciiString &Before)
	Insert aChildToInsert* before the node named Before.* More...
Standard_EXPORT const Handle_Standard_Type &	DynamicType () const
	Type management. More...
Standard_EXPORT Standard_Boolean	IsKind (const Handle_Standard_Type &) const
	Type management. More...
Protected Methods
virtual Standard_EXPORT Standard_Boolean	FindChild (const Handle_exotkTree_TreeNode &aNodeToFind, exotkTree_ListIteratorOfListOfTreeNode &anIterator)
	Find a child. More...
virtual Standard_EXPORT Standard_Boolean	FindChild (const TCollection_AsciiString &aNodeToFind, exotkTree_ListIteratorOfListOfTreeNode &anIterator)
	Find a child. More...
Protected Attributes
Handle_exotkTree_TreeNode	myParent
Handle_Standard_Transient	myData
Handle_exotkTree_Tree	myTree
exotkTree_ListOfTreeNode	myChildren
Standard_Boolean	myIsChecked
TCollection_AsciiString	myName
Friends
Standard_EXPORT friend Handle_Standard_Type &	exotkTree_TreeNode_Type_ ()
	Type management. More...

Detailed Description

a node in a tree.

Author:: Stephane Routelous

Definition at line 61 of file exotkTree_TreeNode.hxx.

Constructor & Destructor Documentation

exotkTree_TreeNode::exotkTree_TreeNode ( )

Constructor.

Definition at line 63 of file exotkTree_TreeNode.cxx.
References myIsChecked.

exotkTree_TreeNode::~exotkTree_TreeNode ( ) [virtual]

Destructor.

Definition at line 76 of file exotkTree_TreeNode.cxx.
References SetData(), SetParent(), and SetTree().

Member Function Documentation

exotkTree_TreeNode::AppendChild ( const Handle_exotkTree_TreeNode & aChildToAppend ) [virtual]

Insert aChildToAppend at the end of the child list.

Returns:
Standard_Boolean : false if aChildToAppend already has a parent
Parameters:

aChildToAppend const Handle_exotkTree_TreeNode&

Definition at line 509 of file exotkTree_TreeNode.cxx.
References exotkTree_ListOfTreeNode::Append(), myChildren, and myTree.
Referenced by exotkTree_MenuNode::AddSeparator().

exotkTree_TreeNode::Children ( exotkTree_ListOfTreeNode & aChildList ) [virtual]

Return the children of the node.

Warning:
can be empty if the node has no children
Return values:

aChildList exotkTree_ListOfTreeNode&

Definition at line 180 of file exotkTree_TreeNode.cxx.
References myChildren.

exotkTree_TreeNode::Data ( ) [virtual]

Return the associated data.

Warning:
can be null
Returns:
Handle_Standard_Transient

Definition at line 131 of file exotkTree_TreeNode.cxx.
References myData.

Handle_Standard_Type & exotkTree_TreeNode::DynamicType ( ) const

Type management.

Returns:
const Handle_Standard_Type&

Reimplemented in exotkAIS_DisplayModeMenuNode, exotkAIS_MaterialMenuNode, exotkAIS_TransparencyMenuNode, exotkBRepTree_ShapeNode, exotkTree_MenuNode, and exotkTree_Separator.

exotkTree_TreeNode::FindChild ( const TCollection_AsciiString & aNodeToFind,

exotkTree_ListIteratorOfListOfTreeNode & anIterator

) [protected, virtual]

Find a child.

Returns:
Standard_Boolean
Parameters:

aNodeToFind const TCollection_AsciiString&

anIterator exotkTree_ListIteratorOfListOfTreeNode&

Definition at line 350 of file exotkTree_TreeNode.cxx.
References HasChildren(), exotkTree_ListIteratorOfListOfTreeNode::Initialize(), exotkTree_ListIteratorOfListOfTreeNode::More(), myChildren, exotkTree_ListIteratorOfListOfTreeNode::Next(), and exotkTree_ListIteratorOfListOfTreeNode::Value().

exotkTree_TreeNode::FindChild ( const Handle_exotkTree_TreeNode & aNodeToFind,

exotkTree_ListIteratorOfListOfTreeNode & anIterator

) [protected, virtual]

Find a child.

Returns:
Standard_Boolean
Parameters:

aNodeToFind const Handle_exotkTree_TreeNode&

anIterator exotkTree_ListIteratorOfListOfTreeNode&

Definition at line 324 of file exotkTree_TreeNode.cxx.
References HasChildren(), exotkTree_ListIteratorOfListOfTreeNode::Initialize(), exotkTree_ListIteratorOfListOfTreeNode::More(), myChildren, exotkTree_ListIteratorOfListOfTreeNode::Next(), and exotkTree_ListIteratorOfListOfTreeNode::Value().

exotkTree_TreeNode::FindChild ( const TCollection_AsciiString & aNodeToFind,

Handle_exotkTree_TreeNode & aFoundNode

) [virtual]

Find the child of this with aNodeToFind name.

Returns:
Standard_Boolean : true if the child is found
Parameters:

aNodeToFind const TCollection_AsciiString&

Return values:

aFoundNode Handle_exotkTree_TreeNode&

Definition at line 295 of file exotkTree_TreeNode.cxx.
References HasChildren(), exotkTree_ListIteratorOfListOfTreeNode::Initialize(), exotkTree_ListIteratorOfListOfTreeNode::More(), myChildren, exotkTree_ListIteratorOfListOfTreeNode::Next(), exotkMaterial_Datas::theIterator, and exotkTree_ListIteratorOfListOfTreeNode::Value().
Referenced by InsertChildAfter(), and InsertChildBefore().

exotkTree_TreeNode::FirstChild ( ) [virtual]

Return the first child.

Returns:
Handle_exotkTree_TreeNode

Definition at line 553 of file exotkTree_TreeNode.cxx.
References exotkTree_ListOfTreeNode::First(), HasChildren(), and myChildren.

exotkTree_TreeNode::HasChildren ( ) [virtual]

Return true if the node has children.

Returns:
Standard_Boolean

Definition at line 167 of file exotkTree_TreeNode.cxx.
References exotkTree_ListOfTreeNode::IsEmpty(), and myChildren.
Referenced by FindChild(), FirstChild(), InsertChildAfter(), InsertChildBefore(), and LastChild().

exotkTree_TreeNode::HasData ( ) [virtual]

Return true if a data is associted to the node.

Returns:
Standard_Boolean

Definition at line 143 of file exotkTree_TreeNode.cxx.
References myData.

exotkTree_TreeNode::HasParent ( ) [virtual]

Return true if the node has a parent node.

Returns:
Standard_Boolean

Definition at line 192 of file exotkTree_TreeNode.cxx.
References myParent.

exotkTree_TreeNode::HasTree ( ) [virtual]

Return true if a tree is associated to this node.

Returns:
Standard_Boolean

Definition at line 254 of file exotkTree_TreeNode.cxx.
References myTree.

exotkTree_TreeNode::InsertChildAfter ( const Handle_exotkTree_TreeNode & aChildToInsert,

const TCollection_AsciiString & After

) [virtual]

Insert aChildToInsert after the node named After.

Returns:
Standard_Boolean : false if failed
Parameters:

aChildToInsert const Handle_exotkTree_TreeNode&

After const TCollection_AsciiString&

Definition at line 442 of file exotkTree_TreeNode.cxx.
References FindChild(), HasChildren(), exotkTree_ListOfTreeNode::InsertAfter(), myChildren, myTree, and exotkMaterial_Datas::theIterator.

exotkTree_TreeNode::InsertChildAfter ( const Handle_exotkTree_TreeNode & aChildToInsert,

const Handle_exotkTree_TreeNode & After

) [virtual]

Insert aChildToInsert after After.

Returns:
Standard_Boolean : false if failed
Parameters:

aChildToInsert const Handle_exotkTree_TreeNode&

After const Handle_exotkTree_TreeNode&

Definition at line 376 of file exotkTree_TreeNode.cxx.
References FindChild(), HasChildren(), exotkTree_ListOfTreeNode::InsertAfter(), myChildren, myTree, and exotkMaterial_Datas::theIterator.

exotkTree_TreeNode::InsertChildBefore ( const Handle_exotkTree_TreeNode & aChildToInsert,

const TCollection_AsciiString & Before

) [virtual]

Insert aChildToInsert before the node named Before.

Returns:
Standard_Boolean : false if failed
Parameters:

aChildToInsert const Handle_exotkTree_TreeNode&

Before const TCollection_AsciiString&

Definition at line 476 of file exotkTree_TreeNode.cxx.
References FindChild(), HasChildren(), exotkTree_ListOfTreeNode::InsertBefore(), myChildren, myTree, and exotkMaterial_Datas::theIterator.

exotkTree_TreeNode::InsertChildBefore ( const Handle_exotkTree_TreeNode & aChildToInsert,

const Handle_exotkTree_TreeNode & Before

) [virtual]

Insert aChildToInsert before Before.

Returns:
Standard_Boolean : false if failed
Parameters:

aChildToInsert const Handle_exotkTree_TreeNode&

Before const Handle_exotkTree_TreeNode&

Definition at line 409 of file exotkTree_TreeNode.cxx.
References FindChild(), HasChildren(), exotkTree_ListOfTreeNode::InsertBefore(), myChildren, myTree, and exotkMaterial_Datas::theIterator.

exotkTree_TreeNode::IsChecked ( ) [virtual]

Return true if this node is checked.

Returns:
Standard_Boolean

Definition at line 118 of file exotkTree_TreeNode.cxx.
References myIsChecked.

exotkTree_TreeNode::IsKind ( const Handle_Standard_Type & ) const

Type management.

Returns:
Standard_Boolean
Parameters:

const Handle_Standard_Type&

Reimplemented in exotkAIS_DisplayModeMenuNode, exotkAIS_MaterialMenuNode, exotkAIS_TransparencyMenuNode, exotkBRepTree_ShapeNode, exotkTree_MenuNode, and exotkTree_Separator.

exotkTree_TreeNode::IsRoot ( ) [virtual]

Return true if the node is a root.

Returns:
Standard_Boolean

Definition at line 155 of file exotkTree_TreeNode.cxx.
References myParent, and myTree.

exotkTree_TreeNode::LastChild ( ) [virtual]

Return the last child.

Returns:
Handle_exotkTree_TreeNode

Definition at line 570 of file exotkTree_TreeNode.cxx.
References HasChildren(), exotkTree_ListOfTreeNode::Last(), and myChildren.

exotkTree_TreeNode::Name ( ) [virtual]

Return the name of this node.

Returns:
TCollection_AsciiString

Definition at line 281 of file exotkTree_TreeNode.cxx.
References myName.

void exotkTree_TreeNode::operator delete ( void * anAddress ) [inline]

OCC delete.

Returns:
inline void
Parameters:

void *anAddress

Reimplemented in exotkAF_ViewAntialiasingMenuNode, exotkAF_ViewBackgroundColorMenuNode, exotkAF_ViewFitMenuNode, exotkAF_ViewHLRMenuNode, exotkAF_ViewTypeMenuNode, exotkAIS_DisplayModeMenuNode, exotkAIS_MaterialMenuNode, exotkAIS_TransparencyMenuNode, exotkBRepTree_ShapeNode, exotkTree_MenuNode, and exotkTree_Separator.
Definition at line 94 of file exotkTree_TreeNode.hxx.

void * exotkTree_TreeNode::operator new ( size_t size ) [inline]

OCC new.

Returns:
inline void*
Parameters:

size_t size

Reimplemented in exotkAF_ViewAntialiasingMenuNode, exotkAF_ViewBackgroundColorMenuNode, exotkAF_ViewFitMenuNode, exotkAF_ViewHLRMenuNode, exotkAF_ViewTypeMenuNode, exotkAIS_DisplayModeMenuNode, exotkAIS_MaterialMenuNode, exotkAIS_TransparencyMenuNode, exotkBRepTree_ShapeNode, exotkTree_MenuNode, and exotkTree_Separator.
Definition at line 83 of file exotkTree_TreeNode.hxx.

void * exotkTree_TreeNode::operator new ( size_t ,

void * anAddress

) [inline]

OCC new.

Returns:
inline void*
Parameters:

size_t

void * anAddress

Reimplemented in exotkAF_ViewAntialiasingMenuNode, exotkAF_ViewBackgroundColorMenuNode, exotkAF_ViewFitMenuNode, exotkAF_ViewHLRMenuNode, exotkAF_ViewTypeMenuNode, exotkAIS_DisplayModeMenuNode, exotkAIS_MaterialMenuNode, exotkAIS_TransparencyMenuNode, exotkBRepTree_ShapeNode, exotkTree_MenuNode, and exotkTree_Separator.
Definition at line 72 of file exotkTree_TreeNode.hxx.

exotkTree_TreeNode::Parent ( ) [virtual]

Return the parent.

Warning:
can be null
Returns:
Handle_exotkTree_TreeNode

Definition at line 204 of file exotkTree_TreeNode.cxx.
References myParent.

exotkTree_TreeNode::PrependChild ( const Handle_exotkTree_TreeNode & aChildToPrepend ) [virtual]

Insert aChildToAppend at the beginning of the child list.

Returns:
Standard_Boolean : false if aChildToAppend already has a parent
Parameters:

aChildToAppend const Handle_exotkTree_TreeNode&

Definition at line 531 of file exotkTree_TreeNode.cxx.
References myChildren, myTree, and exotkTree_ListOfTreeNode::Prepend().

exotkTree_TreeNode::SetChecked ( const Standard_Boolean aCheckStatus ) [virtual]

Set the check status.

Returns:
Standard_Boolean : the old status
Parameters:

aCheckStatus const Standard_Boolean

Definition at line 104 of file exotkTree_TreeNode.cxx.
References myIsChecked.

exotkTree_TreeNode::SetData ( const Handle_Standard_Transient & aData ) [virtual]

Set a data to the node.

Parameters:

aData const Handle_Standard_Transient&

Definition at line 91 of file exotkTree_TreeNode.cxx.
References myData.
Referenced by ~exotkTree_TreeNode().

exotkTree_TreeNode::SetName ( const TCollection_AsciiString & aName ) [virtual]

Set the name of this node.

Returns:
TCollection_AsciiString : the old name
Parameters:

aName const TCollection_AsciiString&

Definition at line 267 of file exotkTree_TreeNode.cxx.
References myName.

exotkTree_TreeNode::SetParent ( const Handle_exotkTree_TreeNode & aParent ) [virtual]

Set aParent as parent node.

Warning:
If a parent exists, the old one is replaced by aParent
Parameters:

aParent const Handle_exotkTree_TreeNode&

Definition at line 217 of file exotkTree_TreeNode.cxx.
References myParent.
Referenced by ~exotkTree_TreeNode().

exotkTree_TreeNode::SetTree ( const Handle_exotkTree_Tree & aTree ) [virtual]

Set the tree.

Parameters:

aTree const Handle_exotkTree_Tree&

Definition at line 230 of file exotkTree_TreeNode.cxx.
References myTree.
Referenced by ~exotkTree_TreeNode().

exotkTree_TreeNode::Tree ( ) [virtual]

Return the associated tree.

Returns:
Handle_exotkTree_Tree

Definition at line 242 of file exotkTree_TreeNode.cxx.
References myTree.

Friends And Related Function Documentation

Handle_Standard_Type & exotkTree_TreeNode::exotkTree_TreeNode_Type_ ( ) [friend]

Type management.

Returns:
friend Handle_Standard_Type&

Member Data Documentation

exotkTree_ListOfTreeNode exotkTree_TreeNode::myChildren [protected]

the children list
Definition at line 364 of file exotkTree_TreeNode.hxx.
Referenced by AppendChild(), Children(), FindChild(), FirstChild(), HasChildren(), InsertChildAfter(), InsertChildBefore(), LastChild(), and PrependChild().

Handle_Standard_Transient exotkTree_TreeNode::myData [protected]

the associated data
Definition at line 358 of file exotkTree_TreeNode.hxx.
Referenced by Data(), HasData(), and SetData().

Standard_Boolean exotkTree_TreeNode::myIsChecked [protected]

true if the node is checked
Definition at line 367 of file exotkTree_TreeNode.hxx.
Referenced by exotkAF_ViewHLRMenuNode::Execute(), exotkAF_ViewAntialiasingMenuNode::Execute(), exotkAF_ViewAntialiasingMenuNode::exotkAF_ViewAntialiasingMenuNode(), exotkAF_ViewHLRMenuNode::exotkAF_ViewHLRMenuNode(), exotkAIS_DisplayModeMenuNode::exotkAIS_DisplayModeMenuNode(), exotkTree_TreeNode(), IsChecked(), and SetChecked().

TCollection_AsciiString exotkTree_TreeNode::myName [protected]

the node name
Definition at line 370 of file exotkTree_TreeNode.hxx.
Referenced by exotkAF_ViewAntialiasingMenuNode::exotkAF_ViewAntialiasingMenuNode(), exotkAF_ViewBackgroundColorMenuNode::exotkAF_ViewBackgroundColorMenuNode(), exotkAF_ViewFitMenuNode::exotkAF_ViewFitMenuNode(), exotkAF_ViewHLRMenuNode::exotkAF_ViewHLRMenuNode(), exotkTree_Separator::exotkTree_Separator(), Name(), and SetName().

Handle_exotkTree_TreeNode exotkTree_TreeNode::myParent [protected]

the parent node
Definition at line 355 of file exotkTree_TreeNode.hxx.
Referenced by HasParent(), IsRoot(), Parent(), and SetParent().

Handle_exotkTree_Tree exotkTree_TreeNode::myTree [protected]

the associated tree
Definition at line 361 of file exotkTree_TreeNode.hxx.
Referenced by AppendChild(), HasTree(), InsertChildAfter(), InsertChildBefore(), IsRoot(), PrependChild(), SetTree(), and Tree().

The documentation for this class was generated from the following files:

Generated on Wed Jan 23 12:18:42 2002 for exotk by

exotkTree_TreeNode Class Reference

Public Methods

Protected Methods

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
