exotkAIS_DisplayManager Class Reference

Wrapper class on AIS_DisplayManager,V3d_Viewer, to manage the displayed objects. More...

#include <exotkAIS_DisplayManager.hxx>

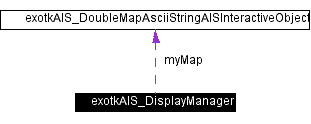

Collaboration diagram for exotkAIS_DisplayManager:

[legend]List of all members.

Public Methods
void *	operator new (size_t, void *anAddress)
	OCC new. More...
void *	operator new (size_t size)
	OCC new. More...
void	operator delete (void *anAddress)
	OCC delete. More...
Standard_EXPORT	exotkAIS_DisplayManager ()
	Constructor. More...
Standard_EXPORT	exotkAIS_DisplayManager (const Handle_V3d_Viewer &aViewer)
	Constructor with an existing viewer. More...
Standard_EXPORT	exotkAIS_DisplayManager (const Handle_AIS_InteractiveContext &anAISContext)
	Constructor with an existing InteractiveContext. More...
virtual Standard_EXPORT	~exotkAIS_DisplayManager ()
	Destructor. More...
virtual Standard_EXPORT TCollection_AsciiString	SetNameSeed (const TCollection_AsciiString &aNewSeed)
	Set the name seed for the object names ( if you give "Object" as seed, the names are "Object_1" ). More...
virtual Standard_EXPORT TCollection_AsciiString	NameSeed ()
	Return the name seed. More...
virtual Standard_EXPORT Handle_AIS_InteractiveContext &	InteractiveContext ()
	Return the interactive context. More...
virtual Standard_EXPORT TCollection_AsciiString	Add (const Handle_AIS_InteractiveObject &anObjectToAdd, const TCollection_AsciiString &aProposedName=TCollection_AsciiString(), const Standard_Integer aDisplayMode=0, const Standard_Boolean UpdateViewer=Standard_True)
	Add anObjectToAdd* to the Display Manager.* More...
virtual Standard_EXPORT TCollection_AsciiString	Remove (const Handle_AIS_InteractiveObject &anObjectToRemove, const Standard_Boolean UpdateViewer=Standard_True)
	Remove anObjectToRemove* from the Display Manager.* More...
virtual Standard_EXPORT TCollection_AsciiString	Remove (const TCollection_AsciiString &anObjectNameToRemove, const Standard_Boolean UpdateViewer=Standard_True)
	Remove an Handle_AIS_InteractiveObject from the Display Manager from its name. More...
virtual Standard_EXPORT void	SetDisplayMode (const Handle_AIS_InteractiveObject &anObject, const enum exotkAIS_DisplayMode aMode)
	Set aMode* as display mode for anObject.* More...
virtual Standard_EXPORT Standard_Boolean	NameExists (const TCollection_AsciiString &aNameToTest)
	Return true if aNameToTest* exists in the display manager.* More...
virtual Standard_EXPORT Standard_Boolean	ObjectExists (const Handle_AIS_InteractiveObject &anObjectToTest)
	Return true if anObjectToTest* exists in the display manager.* More...
virtual Standard_EXPORT TCollection_AsciiString	Name (const Handle_AIS_InteractiveObject &anObjectToFind)
	Return the name of anObjectToFind. More...
virtual Standard_EXPORT Standard_Boolean	CurrentObjects (AIS_SequenceOfInteractive &aSequence)
	return a sequence with the current objects. More...
virtual Standard_EXPORT Handle_AIS_InteractiveObject	InteractiveObject (const TCollection_AsciiString &aNameToFind)
	Return the InteractiveObject associated with aNameToFind. More...
virtual Standard_EXPORT void	SetMaterial (const Handle_AIS_InteractiveObject &anObject, const Graphic3d_MaterialAspect &aMaterial)
	Set aMaterial* for anObject.* More...
virtual Standard_EXPORT void	SetTransparency (const Handle_AIS_InteractiveObject &anObject, const Standard_Real aTransparency)
	Set aTransparency* for anObject.* More...
Standard_EXPORT const Handle_Standard_Type &	DynamicType () const
	Type management. More...
Standard_EXPORT Standard_Boolean	IsKind (const Handle_Standard_Type &) const
	Type management. More...
Private Attributes
Handle_AIS_InteractiveContext	myAISContext
exotkAIS_DoubleMapAsciiStringAISInteractiveObject	myMap
TCollection_AsciiString	myNameSeed
Standard_Integer	myNameIndex
Friends
Standard_EXPORT friend Handle_Standard_Type &	exotkAIS_DisplayManager_Type_ ()
	Type management. More...

Detailed Description

Wrapper class on AIS_DisplayManager,V3d_Viewer, to manage the displayed objects.

Author:: Stephane Routelous

Definition at line 63 of file exotkAIS_DisplayManager.hxx.

Constructor & Destructor Documentation

exotkAIS_DisplayManager::exotkAIS_DisplayManager ( )

Constructor.

Definition at line 90 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_GraphicDevice::GetGraphicDevice(), exotkAIS_GraphicDevice::Instance(), myAISContext, myNameIndex, and myNameSeed.

exotkAIS_DisplayManager::exotkAIS_DisplayManager ( const Handle_V3d_Viewer & aViewer )

Constructor with an existing viewer.

Parameters:

aViewer const Handle_V3d_Viewer&

Definition at line 124 of file exotkAIS_DisplayManager.cxx.
References myAISContext, myNameIndex, and myNameSeed.

exotkAIS_DisplayManager::exotkAIS_DisplayManager ( const Handle_AIS_InteractiveContext & anAISContext )

Constructor with an existing InteractiveContext.

Parameters:

anAISContext const Handle_AIS_InteractiveContext&

Definition at line 142 of file exotkAIS_DisplayManager.cxx.
References myAISContext, myNameIndex, and myNameSeed.

exotkAIS_DisplayManager::~exotkAIS_DisplayManager ( ) [virtual]

Destructor.

Definition at line 159 of file exotkAIS_DisplayManager.cxx.

Member Function Documentation

exotkAIS_DisplayManager::Add ( const Handle_AIS_InteractiveObject & anObjectToAdd,

const TCollection_AsciiString & aProposedName = TCollection_AsciiString(),

const Standard_Integer aDisplayMode = 0,

const Standard_Boolean UpdateViewer = Standard_True

) [virtual]

Add anObjectToAdd to the Display Manager.

Returns:
TCollection_AsciiString : the name of the object
Parameters:

anObjectToAdd const Handle_AIS_InteractiveObject&

aProposedName const TCollection_AsciiString& = TCollection_AsciiString()

aDisplayMode const Standard_Integer = 0

UpdateViewer const Standard_Boolean = Standard_True

Definition at line 255 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_DoubleMapAsciiStringAISInteractiveObject::Bind(), exotkAIS_DoubleMapAsciiStringAISInteractiveObject::Find2(), exotkAIS_DoubleMapAsciiStringAISInteractiveObject::IsBound2(), myAISContext, myMap, myNameIndex, myNameSeed, and NameExists().

exotkAIS_DisplayManager::CurrentObjects ( AIS_SequenceOfInteractive & aSequence ) [virtual]

return a sequence with the current objects.

Returns:
Standard_Boolean : true if some objects are currents
Return values:

aSequence AIS_SequenceOfInteractive&

Definition at line 396 of file exotkAIS_DisplayManager.cxx.
References myAISContext.

Handle_Standard_Type & exotkAIS_DisplayManager::DynamicType ( ) const

Type management.

Returns:
const Handle_Standard_Type&

exotkAIS_DisplayManager::InteractiveContext ( ) [virtual]

Return the interactive context.

Returns:
Handle_AIS_InteractiveContext&

Definition at line 208 of file exotkAIS_DisplayManager.cxx.
References myAISContext.

exotkAIS_DisplayManager::InteractiveObject ( const TCollection_AsciiString & aNameToFind ) [virtual]

Return the InteractiveObject associated with aNameToFind.

Returns:
Handle_AIS_InteractiveObject : null if aNameToFind is not found
Parameters:

aNameToFind const TCollection_AsciiString&

Definition at line 357 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_DoubleMapAsciiStringAISInteractiveObject::Find1(), exotkAIS_DoubleMapAsciiStringAISInteractiveObject::IsBound1(), and myMap.
Referenced by Remove().

exotkAIS_DisplayManager::IsKind ( const Handle_Standard_Type & ) const

Type management.

Returns:
Standard_Boolean
Parameters:

const Handle_Standard_Type&

exotkAIS_DisplayManager::Name ( const Handle_AIS_InteractiveObject & anObjectToFind ) [virtual]

Return the name of anObjectToFind.

Returns:
TCollection_AsciiString : empty if anObjectToFind is not found
Parameters:

anObjectToFind const Handle_AIS_InteractiveObject&

Definition at line 377 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_DoubleMapAsciiStringAISInteractiveObject::Find2(), exotkAIS_DoubleMapAsciiStringAISInteractiveObject::IsBound2(), and myMap.
Referenced by Remove().

exotkAIS_DisplayManager::NameExists ( const TCollection_AsciiString & aNameToTest ) [virtual]

Return true if aNameToTest exists in the display manager.

Returns:
Standard_Boolean
Parameters:

aNameToTest const TCollection_AsciiString&

Definition at line 221 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_DoubleMapAsciiStringAISInteractiveObject::IsBound1(), and myMap.
Referenced by Add().

exotkAIS_DisplayManager::NameSeed ( ) [virtual]

Return the name seed.

Returns:
TCollection_AsciiString

Definition at line 195 of file exotkAIS_DisplayManager.cxx.
References myNameSeed.

exotkAIS_DisplayManager::ObjectExists ( const Handle_AIS_InteractiveObject & anObjectToTest ) [virtual]

Return true if anObjectToTest exists in the display manager.

Returns:
Standard_Boolean
Parameters:

anObjectToTest const Handle_AIS_IteractiveObject&

Definition at line 237 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_DoubleMapAsciiStringAISInteractiveObject::IsBound2(), and myMap.
Referenced by SetDisplayMode(), SetMaterial(), and SetTransparency().

void exotkAIS_DisplayManager::operator delete ( void * anAddress ) [inline]

OCC delete.

Returns:
inline void
Parameters:

void *anAddress

Definition at line 96 of file exotkAIS_DisplayManager.hxx.
References exotkAIS_DisplayMode.

void * exotkAIS_DisplayManager::operator new ( size_t size ) [inline]

OCC new.

Returns:
inline void*
Parameters:

size_t size

Definition at line 85 of file exotkAIS_DisplayManager.hxx.

void * exotkAIS_DisplayManager::operator new ( size_t ,

void * anAddress

) [inline]

OCC new.

Returns:
inline void*
Parameters:

size_t

void * anAddress

Definition at line 74 of file exotkAIS_DisplayManager.hxx.

exotkAIS_DisplayManager::Remove ( const TCollection_AsciiString & anObjectNameToRemove,

const Standard_Boolean UpdateViewer = Standard_True

) [virtual]

Remove an Handle_AIS_InteractiveObject from the Display Manager from its name.

Returns:
TCollection_AsciiString : return the name of the removed object. If the name is emoty, the function failed
Parameters:

anObjectNameToRemove const TCollection_AsciiString&

UpdateViewer const Standard_Boolean = Standard_True

Definition at line 338 of file exotkAIS_DisplayManager.cxx.
References InteractiveObject(), and Remove().

exotkAIS_DisplayManager::Remove ( const Handle_AIS_InteractiveObject & anObjectToRemove,

const Standard_Boolean UpdateViewer = Standard_True

) [virtual]

Remove anObjectToRemove from the Display Manager.

Returns:
TCollection_AsciiString : return the name of the removed object. If the name is emoty, the function failed
Parameters:

anObjectToRemove const Handle_AIS_InteractiveObject&

UpdateViewer const Standard_Boolean = Standard_True

Definition at line 308 of file exotkAIS_DisplayManager.cxx.
References exotkAIS_DoubleMapAsciiStringAISInteractiveObject::IsBound2(), myAISContext, myMap, Name(), and exotkAIS_DoubleMapAsciiStringAISInteractiveObject::UnBind2().
Referenced by Remove().

exotkAIS_DisplayManager::SetDisplayMode ( const Handle_AIS_InteractiveObject & anObject,

const enum exotkAIS_DisplayMode aMode

) [virtual]

Set aMode as display mode for anObject.

Parameters:

anObject const Handle_AIS_InteractiveObject&

aMode const enum exotkAIS_DisplayMode

Definition at line 417 of file exotkAIS_DisplayManager.cxx.
References myAISContext, and ObjectExists().

exotkAIS_DisplayManager::SetMaterial ( const Handle_AIS_InteractiveObject & anObject,

const Graphic3d_MaterialAspect & aMaterial

) [virtual]

Set aMaterial for anObject.

Parameters:

anObject const Handle_AIS_InteractiveObject&

aMaterial const Graphic3d_MaterialAspect&

Definition at line 435 of file exotkAIS_DisplayManager.cxx.
References myAISContext, and ObjectExists().

exotkAIS_DisplayManager::SetNameSeed ( const TCollection_AsciiString & aNewSeed ) [virtual]

Set the name seed for the object names ( if you give "Object" as seed, the names are "Object_1" ).

Returns:
TCollection_AsciiString : the old seed
Parameters:

aNewSeed const TCollection_AsciiString&

Definition at line 172 of file exotkAIS_DisplayManager.cxx.
References myNameIndex, and myNameSeed.

exotkAIS_DisplayManager::SetTransparency ( const Handle_AIS_InteractiveObject & anObject,

const Standard_Real aTransparency

) [virtual]

Set aTransparency for anObject.

Parameters:

anObject const Handle_AIS_InteractiveObject&

aTransparency const Standard_Real

Definition at line 445 of file exotkAIS_DisplayManager.cxx.
References myAISContext, and ObjectExists().

Friends And Related Function Documentation

Handle_Standard_Type & exotkAIS_DisplayManager::exotkAIS_DisplayManager_Type_ ( ) [friend]

Type management.

Returns:
friend Handle_Standard_Type&

Member Data Documentation

Handle_AIS_InteractiveContext exotkAIS_DisplayManager::myAISContext [private]

the exotkAIS_InteractiveContext
Definition at line 272 of file exotkAIS_DisplayManager.hxx.
Referenced by Add(), CurrentObjects(), exotkAIS_DisplayManager(), InteractiveContext(), Remove(), SetDisplayMode(), SetMaterial(), and SetTransparency().

exotkAIS_DoubleMapAsciiStringAISInteractiveObject exotkAIS_DisplayManager::myMap [private]

the map to store the objects and theit names
Definition at line 275 of file exotkAIS_DisplayManager.hxx.
Referenced by Add(), InteractiveObject(), Name(), NameExists(), ObjectExists(), and Remove().

Standard_Integer exotkAIS_DisplayManager::myNameIndex [private]

the index for the name
Definition at line 281 of file exotkAIS_DisplayManager.hxx.
Referenced by Add(), exotkAIS_DisplayManager(), and SetNameSeed().

TCollection_AsciiString exotkAIS_DisplayManager::myNameSeed [private]

the nname seed for the object names
Definition at line 278 of file exotkAIS_DisplayManager.hxx.
Referenced by Add(), exotkAIS_DisplayManager(), NameSeed(), and SetNameSeed().

The documentation for this class was generated from the following files:

Generated on Wed Jan 23 12:18:30 2002 for exotk by

exotkAIS_DisplayManager Class Reference

Public Methods

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
